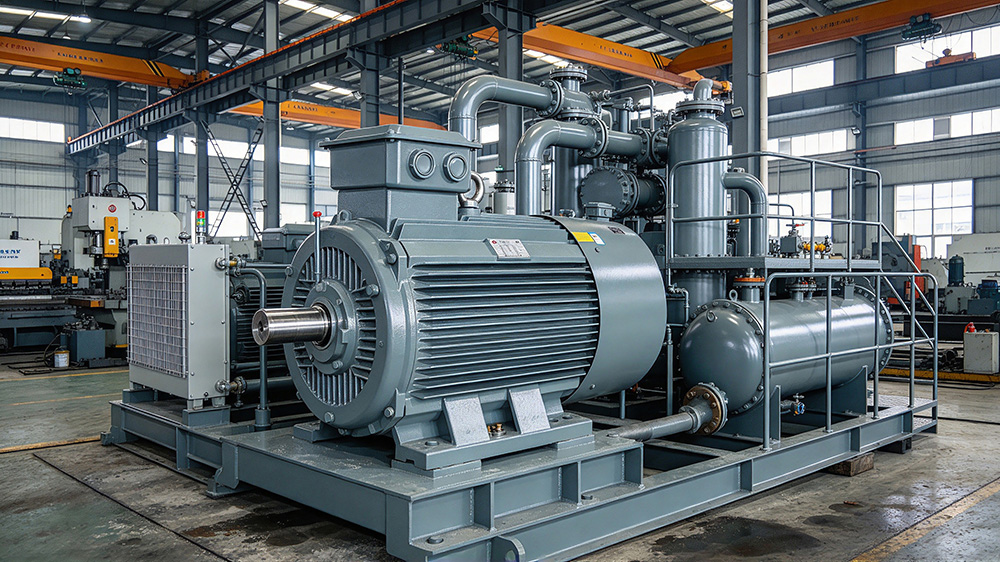

Compressed air is the "industrial blood" of a factory, and compressors are undoubtedly the biggest electricity consumers in the workshop. Many enterprises experience significant fluctuations in air demand, yet still use traditional motors to drive their compressors, resulting in no-load losses, unstable pressure, and soaring electricity bills. Over time, these costs become staggering.
If you want to reduce costs and improve efficiency for your compressor, motor selection is the key step. The Henda YE5VP variable frequency调速 three-phase asynchronous motor (hereinafter referred to as YE5VP), specifically designed for variable frequency operating conditions and equipped with IE5 ultra-high energy efficiency, has become the preferred choice for an increasing number of air compressor equipment manufacturers and factory retrofitting projects. Today, let's discuss what exactly makes the YE5VP variable frequency motor superior for compressor applications.
I. IE5 Ultra-High Energy Efficiency: Significant Electricity Bill Reduction in Long-Term Operation
YE5VP achieves IE5 ultra-premium energy efficiency, placing it in the top tier of energy efficiency among asynchronous motors, in line with national energy conservation and carbon reduction policies.
Ordinary variable frequency motors tend to experience efficiency drops under variable load operation, while YE5VP, through dedicated electromagnetic optimization, maintains higher efficiency under both rated conditions and common medium-to-low load ranges.
Compressors are rarely running at full load all day; workshop air demand fluctuates. YE5VP can adjust its speed according to air demand, reducing no-load and unload energy consumption. Over time, the difference in electricity bills becomes very noticeable, and the payback period for the investment is short.
II. Independent Forced Cooling Design: Low-Speed Constant Torque, Addressing Compressor Variable Operating Condition Pain Points
The most troublesome variable frequency challenge for compressors: at low speeds, motor heat dissipation deteriorates, making it prone to temperature rise exceeding limits and insufficient output.

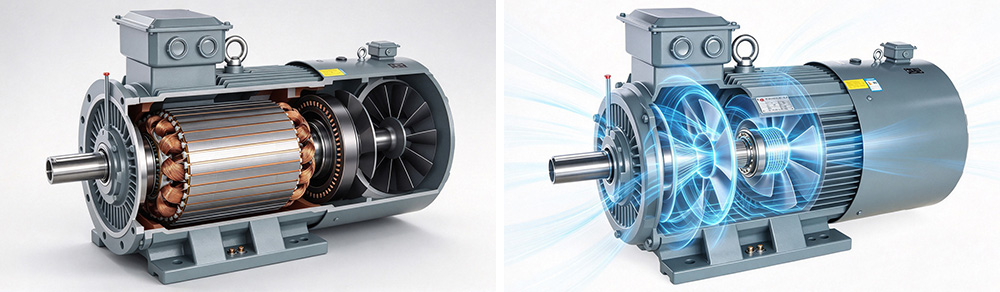

YE5VP is equipped with an independent external fan cooling system (IC416), which is decoupled from the main motor speed. Even during prolonged low-frequency, low-speed operation, the cooling fan continues to work independently, keeping temperature rise under control and stably delivering constant torque. At low frequencies, it can stably drive the compressor main unit without experiencing weakness or overheating alarms.
Meanwhile, sufficient overload capacity is retained in the high-frequency range to handle sudden increases in air demand and load fluctuations, significantly enhancing system stability.
III. Resistant to Inverter Peak Voltages: Reliable Insulation, Extending Overall Equipment Life
The PWM carrier wave output by the inverter generates peak overvoltages. Ordinary motors used over the long term are prone to insulation breakdown, resulting in turn-to-turn faults, and the losses from compressor shutdown for maintenance can be enormous.
YE5VP features a reinforced insulation system, specifically optimized against high-frequency voltage surges from inverters, with stronger dv/dt resistance that effectively suppresses insulation aging caused by voltage peaks. With Class F insulation and IP55 protection rating, it is dustproof and waterproof, enabling stable operation even in dusty or humid workshop environments, reducing the risk of unexpected shutdowns.
IV. Low Vibration and Low Noise: Smoother Operation, Protecting the Main Unit and Piping Network
Excessive compressor vibration can accelerate bearing wear in the main unit, loosen piping, and cause air leaks, leading to additional maintenance costs.
YE5VP features optimized electromagnetic and structural design, resulting in low vibration, low noise, and smooth operation. Its soft-start characteristic provides gentle starting current without inrush current, avoiding impact on the power grid and the compressor main unit during startup, reducing pressure fluctuations in the piping network, delivering more stable supply pressure, and lowering pipeline leakage losses.
V. Strong Expandability: Easy Integration with Automation Control Systems
YE5VP has reserved installation interfaces, allowing for the addition of encoders and brakes, and easy connection to PLCs and host computers for closed-loop pressure control, precise speed regulation, and condition monitoring.
Factories can build intelligent air compressor stations that adjust speed in real time based on air demand, stabilize pipeline pressure, reduce energy consumption from redundant high pressure, and meet the needs of digital workshop transformation. With standard mounting dimensions and multiple installation options such as B3/B5, it offers good adaptability for retrofitting both new and old compressors, making replacement and upgrade convenient.
VI. Compliance and Peace of Mind: Suitable for Green Factories and Energy Audits
Against the backdrop of the dual-carbon goals, many enterprises face energy consumption audits, green factory certifications, and energy-saving subsidy applications. YE5VP meets the GB18613-2020 Grade 1 energy efficiency standard and the IE5 international standard, ensuring equipment selection compliance, helping enterprises meet energy consumption targets, and making green retrofit projects easier to implement.
Summary
Choosing the YE5VP variable frequency motor for your compressor is not just purchasing a motor—it's a complete cost-reduction solution: IE5 energy savings, reliable low-speed heat dissipation, resistance to variable frequency surges, smooth operation, and easy intelligent transformation.
If your factory has fluctuating air demand, compressors running under variable load year-round, and you want to reduce electricity bills and minimize shutdowns for maintenance, the YE5VP is worth adding to your selection list.
Henda Motor has always been dedicated to the R&D, production, and service of variable frequency motors. With advanced technology and equipment, lean manufacturing processes, reliable product quality, and satisfactory after-sales service, the company provides customers with the most suitable professional motor solutions, creating greater social value.
